BPI's Silver Satin Telephone Line Cords are terminated with UL Listed
6 position 4 conductor modular plugs and utilize heavy guage silver
26 AWG silver satin wire.
- Available with 50u or 6u Gold Plated Modular Plugs.
- 26 AWG Stranded Copper Conductors
- UL Listed
| Part# |
Description |
QTY/Case |
| 53-107 |
7' Line Cord w/ 6u Plugs |
250 |
| 53-114 |
14' Line Cord w/ 6u Plugs |
150 |
| 53-125 |
25' Line Cord w/ 6u Plugs |
100 |
| 53-107-50 |
7' Line Cord w/ 50u Plugs |
250 |
| 53-114-50 |
14' Line Cord w/ 50u Plugs |
150 |
| 53-125-50 |
25' Line Cord w/ 50u Plugs |
100 |
| 53-107-2C |
7' Beige Line Cord - 2 Conductors |
250 |
| 53-114-2C |
14' Beige Line Cord - 2 Conductors |
150 |
|

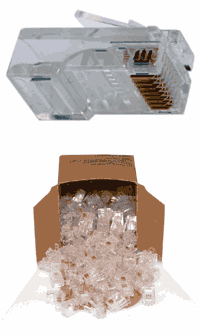

BPI's Modular Plugs are used to repair and or add telephone or data
patch cords in the field. The plugs are terminated UTP or Silver Satin
cable in both solid or stranded applications.
- High Impact Clear Poly Carbonate.
- 6u or 50u Golf Plated Contacts.
- UL Listed
| Part# |
Description |
QTY/Case |
| 53-6X4 |
6 Pos. 4 cond RJ11 6u Plating |
100 |
| 53-6X4-50 |
6 Pos. 4 cond RJ11 50u Plating |
100 |
| 53-8X8-50 |
8 Pos. 8 cond RJ45 50u Plating |
100 |
|
|
BPI's Silver Satin Cable can be used for telephone and data applications.
Our Silver Satin Cable is constru cted from 26 AWG stranded copper wire
enclosed in a silver satin jacket. For field installations this cable
can be terminate
d with our modular plugs using a standard modular crimping
tool. Silver Satin Cable comes in 4, 6, and 8 conductor.
MATERIALS AND CONTRUCTION- Outer Jacket Material - PVC 2.5mm
- Outer Jacket Thickness - 0.62mm
- Conductors - 26AWG Solid Copper
- Insulation - Polypro OD 0.95mm / Thickness 0.25mm
- Insulation Colors - Black, Yellow, Red, Green
STANDARDS AND CERTIFICATIONS
- UL Listed, UL 20251
- CSA AWM
- NEC CM VW-1 Flame Test, Passed
| Part# |
Description |
QTY/Case |
| 53-40500 |
500' Reel Silver Satin 4 Cond |
1 |
| 53-41000 |
1000' Reel Silver Satin 4 Cond |
1 |
| 53-60500 |
500' Reel Silver Satin 6 Cond |
1 |
| 53-61000 |
1000' Reel Silver Satin 6 Cond |
1 |
| 53-80500 |
500' Reel Silver Satin 8 Cond |
1 |
| 53-81000 |
1000' Reel Silver Satin 8 Cond |
1 |
|
| |
